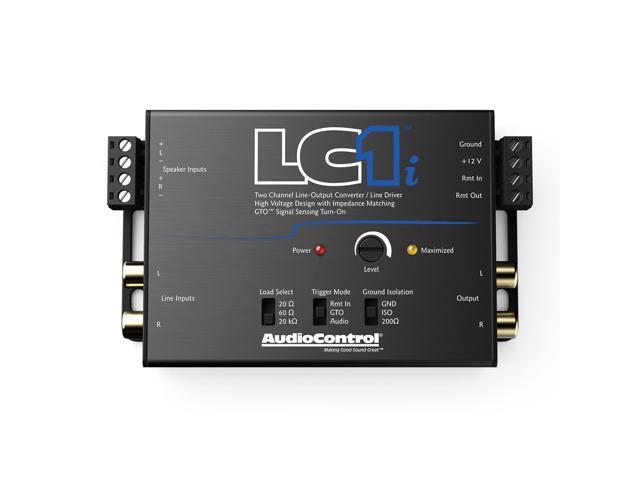

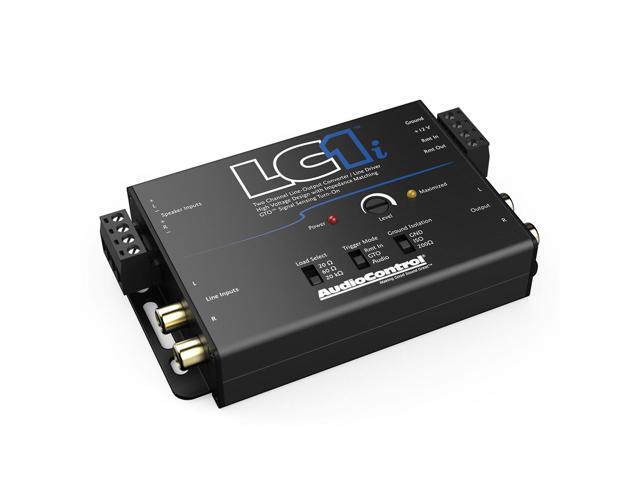

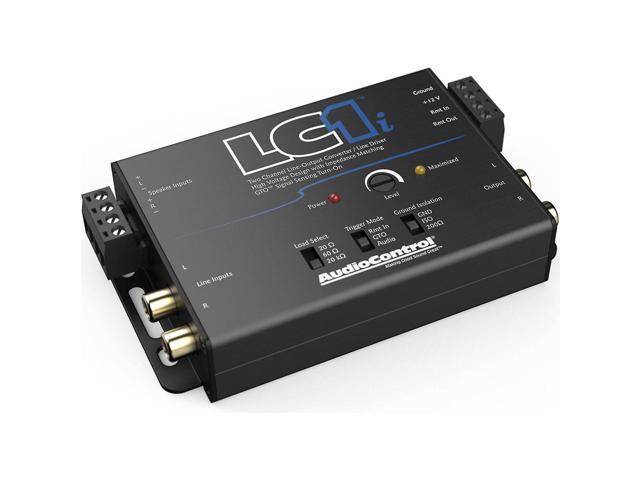

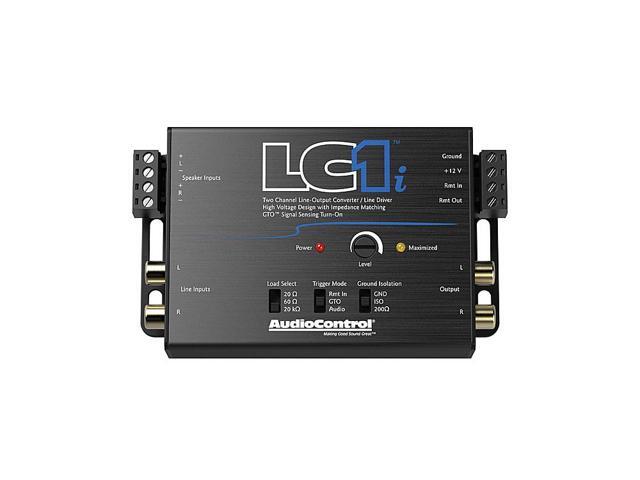

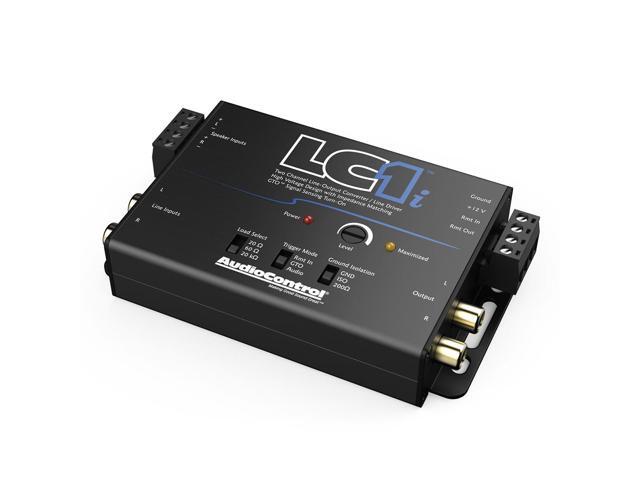

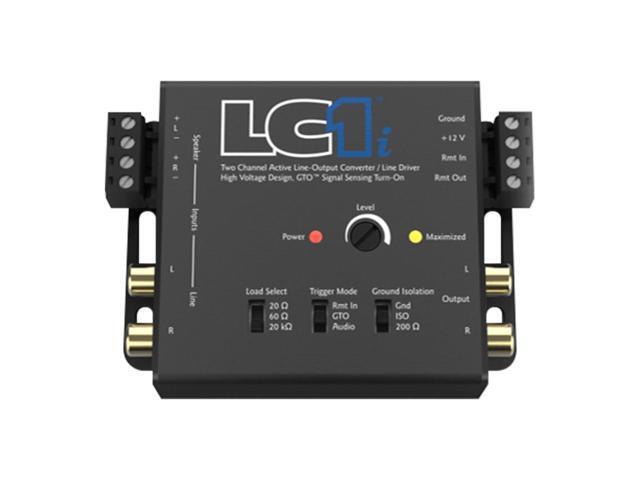

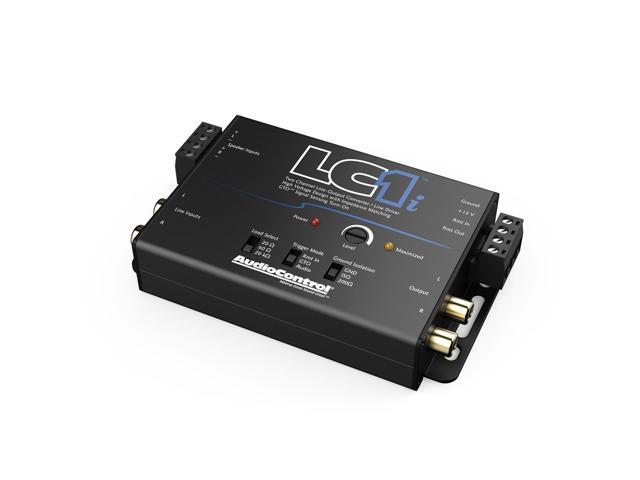

AudioControl - 2-Channel Active Line Output Converter and Line Driver - Black

{
  "sku": 6482921,
  "upc": "851523007799",
  "url": "https://api.bestbuy.com/click/-/6482921/pdp",
  "name": "AudioControl - 2-Channel Active Line Output Converter and Line Driver - Black",
  "image": "https://pisces.bbystatic.com/prescaled/500/500/image2/BestBuy_US/images/products/6482/6482921_sd.jpg",
  "details": [
    {
      "name": "Brand",
      "value": "AudioControl",
      "values": [
        "AudioControl"
      ]
    },
    {
      "name": "Model Number",
      "value": "LC1i",
      "values": [
        "LC1i"
      ]
    },
    {
      "name": "Product Name",
      "value": "2-Channel Active Line Output Converter and Line Driver",
      "values": [
        "2-Channel Active Line Output Converter and Line Driver"
      ]
    },
    {
      "name": "Color",
      "value": "Black",
      "values": [
        "Black"
      ]
    },
    {
      "name": "Number of Channels",
      "value": "2",
      "values": [
        "2"
      ]
    },
    {
      "name": "Surround Sound Supported",
      "value": "Not Applicable",
      "values": [
        "Not Applicable"
      ]
    },
    {
      "name": "Equalizer",
      "value": "No",
      "values": [
        "No"
      ]
    },
    {
      "name": "High/Low Pass Filters",
      "value": "None",
      "values": [
        "None"
      ]
    },
    {
      "name": "Audio Only Inputs",
      "value": "1 x Phono",
      "values": [
        "1 x Phono"
      ]
    },
    {
      "name": "Video Only Inputs",
      "value": "No video only inputs",
      "values": [
        "No video only inputs"
      ]
    },
    {
      "name": "Audio/Video Inputs",
      "value": "No audio/video inputs",
      "values": [
        "No audio/video inputs"
      ]
    },
    {
      "name": "Network Connector(s)",
      "value": "No network connectors",
      "values": [
        "No network connectors"
      ]
    },
    {
      "name": "Number of HDMI Inputs (Total)",
      "value": "0",
      "values": [
        "0"
      ]
    },
    {
      "name": "Number of USB Inputs",
      "value": "0",
      "values": [
        "0"
      ]
    },
    {
      "name": "Video Only Outputs",
      "value": "No video only outputs",
      "values": [
        "No video only outputs"
      ]
    },
    {
      "name": "Audio/Video Outputs",
      "value": "No audio/video outputs",
      "values": [
        "No audio/video outputs"
      ]
    },
    {
      "name": "Number of Subwoofer Pre Outs",
      "value": "0",
      "values": [
        "0"
      ]
    },
    {
      "name": "Number of HDMI Outputs (Total)",
      "value": "0",
      "values": [
        "0"
      ]
    },
    {
      "name": "Remote Control Included",
      "value": "No",
      "values": [
        "No"
      ]
    },
    {
      "name": "Effect Type(s)",
      "value": "None",
      "values": [
        "None"
      ]
    },
    {
      "name": "On-Screen Display",
      "value": "No",
      "values": [
        "No"
      ]
    },
    {
      "name": "Product Height",
      "value": "3 inches",
      "values": [
        "3 inches"
      ]
    },
    {
      "name": "Product Width",
      "value": "4.8 inches",
      "values": [
        "4.8 inches"
      ]
    },
    {
      "name": "Product Depth",
      "value": "1 inches",
      "values": [
        "1 inches"
      ]
    },
    {
      "name": "Product Weight",
      "value": "0.55 pounds",
      "values": [
        "0.55 pounds"
      ]
    },
    {
      "name": "Warranty - Parts",
      "value": "5 years",
      "values": [
        "5 years"
      ]
    },
    {
      "name": "Warranty - Labor",
      "value": "5 years",
      "values": [
        "5 years"
      ]
    }
  ],
  "features": [
    {
      "feature": "Compatible with most vehicles’ OEM audio systems\nFor use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs or when replacing your vehicle’s factory radio and retaining the factory amplified audio system."
    },
    {
      "feature": "2-channel interface\nFeatures one set of active speaker-level inputs, one set of line-level inputs, and one set of line-level outputs for integration with your existing audio system."
    },
    {
      "feature": "Built-in line driver\nProvides optimal preamp signal when an aftermarket head unit is installed."
    },
    {
      "feature": "Turn-on trigger mode switch\nChoose between GTO Signal Sense (DC offset) and audio sense to automatically power the line output converter or use remote 12V input for manual control."
    },
    {
      "feature": "Single variable stereo gain control with clipping indicator\nAllows you to adjust the output signal from -12dB to +12dB and indicates signal clipping when gain is set to high."
    },
    {
      "feature": "Selectable on-board load resistors\nIncluding 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles."
    },
    {
      "feature": "400W (40V) peak power input per channel @ 20k ohms\nFor high-quality sound."
    },
    {
      "feature": "9.5V RMS (13V peak) maximum output voltage @ 14.4V\nFor efficient operation."
    },
    {
      "feature": "Selectable ground isolation\nChoose from common, ISO (default), or 200 ohms."
    },
    {
      "feature": "20Hz - 50kHz frequency response\nEnsures faithful sound reproduction."
    },
    {
      "feature": ">110dBA signal-to-noise ratio\nEnjoy crisp audio."
    },
    {
      "feature": "<0.01% Total Harmonic Distortion (THD)\nFor clean sound."
    },
    {
      "feature": "Slim chassis with integrated mounting brackets\nEnables quick and easy installation."
    },
    {
      "feature": "5-year warranty\nTo protect against defects in materials and workmanship."
    }
  ],
  "condition": "New",
  "salePrice": 89.99,
  "categoryPath": [
    {
      "id": "cat00000",
      "name": "Best Buy"
    },
    {
      "id": "abcat0200000",
      "name": "Home Audio & Speakers"
    },
    {
      "id": "pcmcat241600050001",
      "name": "Home Audio"
    },
    {
      "id": "pcmcat309300050002",
      "name": "Receivers & Amplifiers"
    },
    {
      "id": "abcat0202004",
      "name": "Home Amplifiers"
    },
    {
      "id": "pcmcat1503675032304",
      "name": "Preamps"
    }
  ],
  "manufacturer": "AudioControl",
  "regularPrice": 149.99,
  "shippingCost": "",
  "longDescription": "Easily add an aftermarket amplifier to your vehicle&#8217;s factory audio system with this 2-Channel Active Line Output Converter and Line Driver by AudioControl. The LC1i converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier without replacing your factory radio. This two-channel line output converter and line driver can also be used to retain your vehicle&#8217;s OEM amplified audio system when replacing your factory radio.",
  "shortDescription": null,
  "onlineAvailability": true,
  "inStoreAvailability": true
}
